Aluminium 6063 is one of the most used aluminium alloys across many industries. It is known for its smooth finish, high strength, and great formability. This alloy works well for applications where a clean look and good corrosion resistance matter. Panchdeep Metal supplies high-quality Aluminium 6063 Sheets, Plates and Coils that match global standards and meet demanding project needs. We are a trusted manufacturer and supplier of Aluminium 6063 products in India and across global markets. We serve industrial buyers, construction companies, fabricators and OEMs by offering reliable material, fast delivery, and custom sizes. Our team focuses on quality so customers get material that performs well in tough and everyday conditions.
Aluminium 6063 Plates Manufacturer, 6063 Aluminium Alloy Plates | Aluminum Grade 6063 T-6 Coils Manufacturer in Mumbai

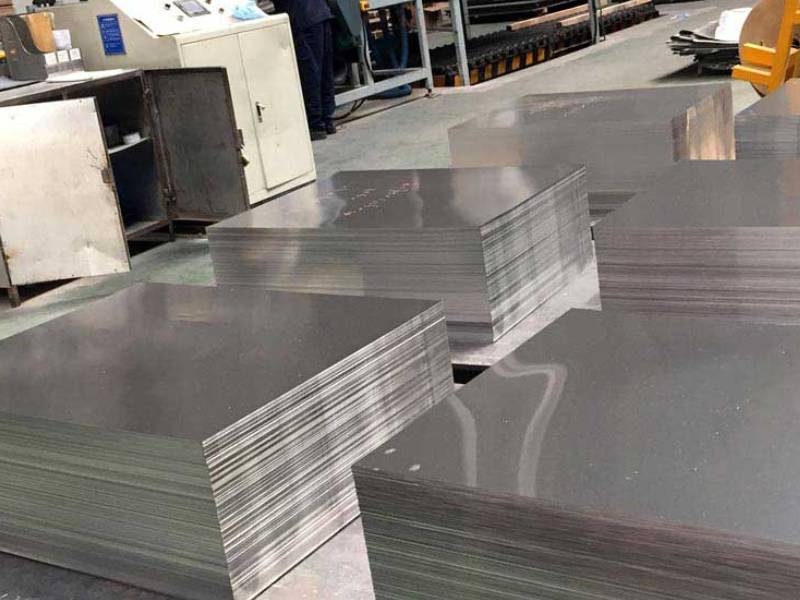

About 6063 Aluminium Sheet, Plate & Coil
Aluminium Alloy 6063 Sheet, Plate & Coils contains magnesium and silicon. This mix gives the alloy good strength and outstanding corrosion resistance. It also makes the material easy to weld and bend. Aluminium 6063 Sheets & Plates are preferred for lightweight structures. They are used where higher strength and stability are needed. It works well for long-length forming, cladding, and general fabrication. The alloy’s smooth surface and excellent anodizing ability make it a top choice for decorative and structural work.
Aluminium 6063 Sheets and Plates come in both hot rolled and cold rolled forms. Hot rolled sheets offer better thickness range and improved strength. Cold rolled sheets give superior surface finish and tighter thickness tolerance. ASME SB209 6063 Plates are used for structural and pressure-related work. Grade T6 Coils provide high strength through heat treatment and perform well under load. This alloy is used in many sectors due to its lightweight nature and clean surface finish.
Aluminium 6063 Hot Rolled Sheets, Aluminum 6063 Cold Rolled Sheet, ASME SB209 Aluminium Alloy 6063 Plate
Table of Contents
Aluminum 6063 Grade T-6 Coils, Aluminum 6063 T6 Sheet, Aluminium Alloy 3.32206 Plate
Aluminium 6063 Sheets and Plates come in both hot rolled and cold rolled forms. Hot rolled sheets offer better thickness range and improved strength. Cold rolled sheets give superior surface finish and tighter thickness tolerance. ASME SB209 6063 Plates are used for structural and pressure-related work. Grade T6 Coils provide high strength through heat treatment and perform well under load. This alloy is used in many sectors due to its lightweight nature and clean surface finish.
Types of Aluminium 6063 Sheets, Plates & Coils

Hot Rolled Plates

Cold Rolled Plates

Coils

Clad Plates

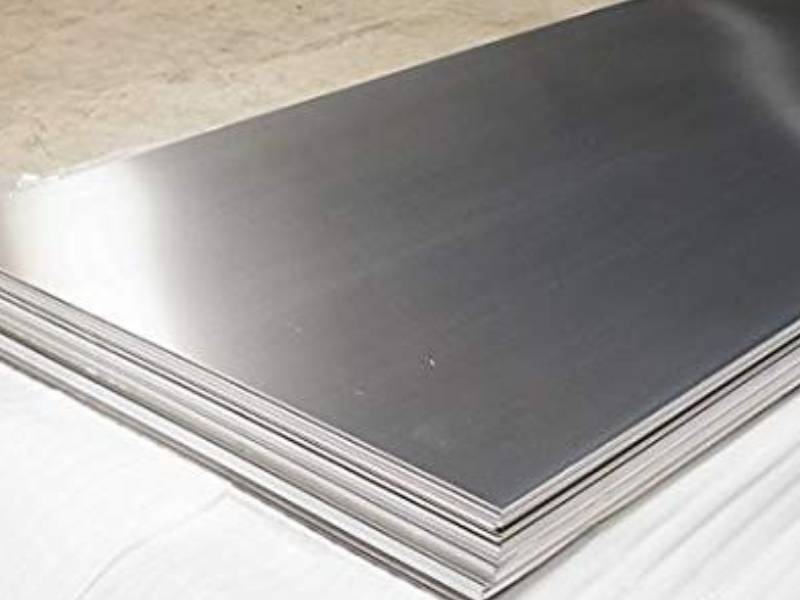

Polished Sheets

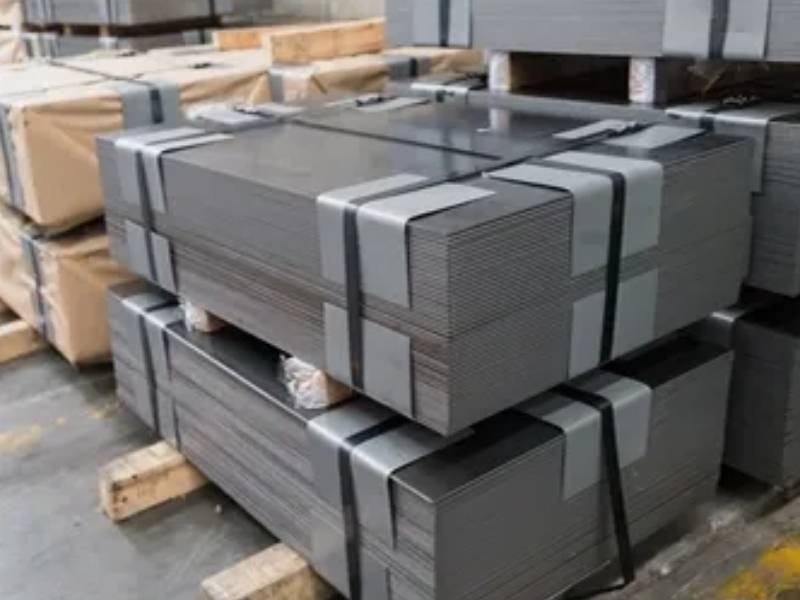

Custom Size Cut-to-Length Sheets
Specifications of Alloy 6063 Sheets & Plates
This section covers the standard specifications of our Aluminium 6063 Sheets and Plates. These specifications help match the right material grade for their project. It ensures proper thickness, temper, tensile strength, and chemical mix.
| Specification | Details |
| Grade | Aluminium Alloy 6063 |
| Standards | ASTM B209 / ASME SB209 |
| Temper | O, T4, T5, T6, T83 |
| Thickness Range | Sheets: 0.5 mm – 6 mm Plates: 6 mm – 150 mm |
| Width | 1000 mm – 2500 mm |
| Length | 2000 mm – 6000 mm (custom sizes available) |
| Finish | Mill Finish, Anodized, Polished, Brushed, Embossed |
Aluminum 6063 Sheets, Plates & Coils Equivalent Grades
Below are the equivalent standards used in different countries. This table help cross-check grades when sourcing internationally.
| Standard | Grade |
| UNS | A96063 |
| Werkstoff Nr. | 3.32206 |
| ASTM | 6063 |
| EN | AW-6063 |
| JIS | A6063 |
Chemical Composition of Aluminium Alloy 6063 Sheets & Plates
The table below shows the typical chemical composition of Alloy 6063. Each element impacts strength, corrosion resistance, and formability.
| Element | Percentage (%) |
| Magnesium (Mg) | 0.45 – 0.9 |
| Silicon (Si) | 0.2 – 0.6 |
| Iron (Fe) | 0.35 max |
| Copper (Cu) | 0.10 max |
| Manganese (Mn) | 0.10 max |
| Chromium (Cr) | 0.10 max |
| Zinc (Zn) | 0.10 max |
| Titanium (Ti) | 0.10 max |
| Aluminium (Al) | Balance |
Mechanical Properties of Alloy 6063 Sheets & Plates
The values in the below section help in selecting sheets and plates for fabrication, bending, forming and load-bearing work.
| Property | Value |
| Tensile Strength | 130 – 180 MPa |
| Yield Strength | 65 – 120 MPa |
| Elongation | 8 – 12% |
| Brinell Hardness | 60 HB max |
| Density | 2.70 g/cm³ |
Aluminium 6063 Sheets Industrial Application
Our aluminium 6063 is used across many industries because it is light, strong, and easy to shape. In the building sector, it is used for panels, window frames, roofing and structural parts. The clean surface looks great in both interior and exterior spaces. In transport, manufacturers use it for bus panels, automotive body parts, and rail cabins due to its low weight and good strength. The furniture industry use our 6063 Sheets for modular frames, shelves, and decorative parts. In manufacturing, the material is used for machine covers, heat transfer systems, and general fabrication work. It is also used for electrical housings, solar panel frames, and marine interiors.
Why Choose Panchdeep Metal for Aluminium 6063 Sheets & Plates?
Panchdeep Metal supplies Aluminium 6063 Sheets, Plates, and Coils that meet strict quality checks. We offer material in many tempers, finishes, and custom sizes. Our stock is ready for quick dispatch, which helps customers meet deadlines. We cut sheets and plates to the size you need. Our team supports buyers from selection to delivery. We focus on honest pricing, reliable supply, and consistent quality. These values make us a preferred supplier for Aluminium 6063 products.
FAQ
What is 6063 aluminium used for?
It is used for doors, windows, panels, frames, furniture, and transport parts.
Is Aluminium 6063 suitable for outdoor environments?
Yes. It resists corrosion and works well in outdoor weather.
Is 6063 aluminum easy to bend?
Yes. It bends easily, especially in soft tempers like O or T5.
Is 6063 easy to weld and bend?
Yes. It welds well and forms well without cracking.
