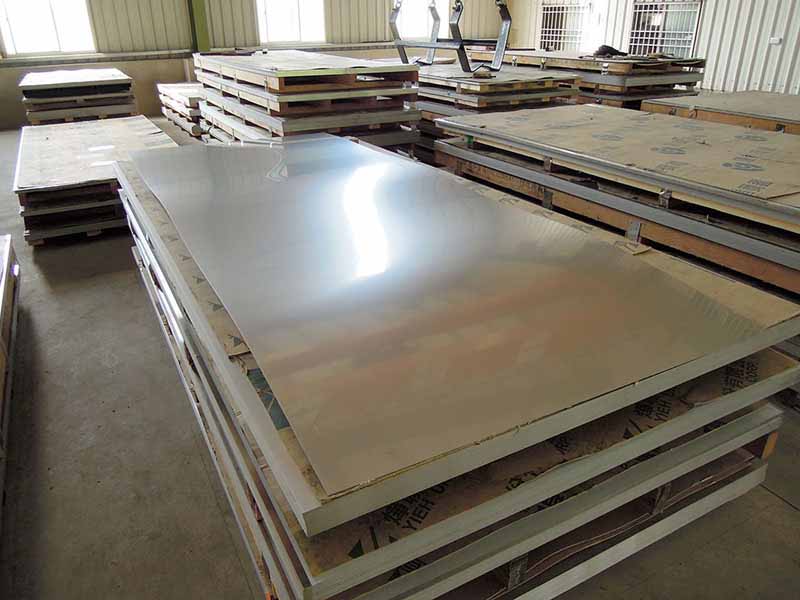

SS 3Cr12L Plate is chromium based ferritic stainless steel that has high corrosion resistance and is developed with alternative construction material that has various mechanical properties and features. Originally, this grade of stainless steel is not included in international specifications. But, 12% of the chromium steel is developed from 3CR12 has DIN designation. This type of stainless steel grade is widely used in manufacturing industries offering excellent performance at the same time. Panchdeep metal is an esteemed and renowned manufacturer and supplier of stainless steel plates.
We make use of advanced technology and top-notch quality of raw material for manufacturing these plates. Not only this, national and global standard specifications are added to the material to make these plates a high-quality product. We offer our customers plates in varied shapes and sizes as per the demand and requirement of customers. The plates are formable and weldable that allows fabrication using different conventional techniques.
The plates are hot and cold rolled with SATIN matt finish. However, if we talk about the testing of these plates, they come across various quality inspections and tests that are under different parameter in the regulations and supervision of quality experts. All these tests are done to check the quality of stainless steel plates. The tests include hardness test, chemical composition analysis, ultrasonic test, third-party inspection, visual inspection, and radiography test. For all these tests and inspections we offer approved test certificates, proving products high quality and durability.
In the end, 3Cr12L Plate is packed and delivered to their respective customers worldwide at an affordable price.
Stainless Steel 3CR12L Plates Specifications:
|Specifications||ASTM A240, ASME SA240|
|Standard||JIS, ASTM, AISI, GB, EN, DIN|
|Surface||2B, 2D, BA, NO.4, NO.8, 8K, Mirror, Checkered, Embossed, Hair Line, Sand Blast, Brush, Etching|
|Finish||Cold rolled, Hot rolled|
|Thickness||0.40mm – 6.00mm|
Chemical Properties of SS 3CR12L Plates
|C||Si ≤||Mn ≤||P ≤||S ≤||N ≤||Cr||Ni|
|≤0.030||1.00||1.50||0.040||0.015||0.030||10.5 – 12.5||0.30 – 1.00|
Mechanical Properties of SS 3CR12L Plates
|Tensile Strength||Yield Strength||Elongation (%)||Reduction of area (%)||Charpy(Akv)||Hardness|
|450-600MPa||260MPa min||20||53||J min||200 max|
